Your receiver is hot. Not “new gear glow” hot. More like “why does it smell like toaster” hot. Let’s fix that. Fast, simple, and without melting anything.
First, know the signs
The top panel feels too hot to touch for more than a second. Audio cuts out. You see “PROTECT,” “TEMP,” or it shuts down mid-movie. The front lights dim when you crank it. Those are thermal clues. Don’t ignore them.
Why it happens
Heat is a by-product of power. More channels. More volume. Lower-impedance speakers. All of it pulls current and makes heat. Bad airflow traps that heat. Dust insulates it. Stacked gear bakes it. A closed cabinet turns it into an oven. Wrong settings can make the amp work harder than it should. It’s a pile-on.
Airflow is king
Receivers breathe through the top and sides. They expel heat up. Give them space. Four inches above is a bare minimum. More is better. Don’t put anything on the top grill. Not a streamer. Not a center channel. Not a cat.
Cabinets are tricky. Doors and glass look nice. They trap heat. Either run it with the door open or add active cooling. A simple intake/exhaust plan solves most cabinet problems: pull cool air in low, push hot air out high. Short, clean cable runs help airflow too.
Dust is a blanket. Power the unit off. Unplug it. Use compressed air to blow dust out of the vents. Do it twice a year.
Speaker load matters
Low-impedance speakers (4 Ω) demand current. Current = heat. Some AVRs handle 4-ohm loads. Many entry models don’t love it—especially on all channels. Mixing easy and hard loads can still heat things up.
Check the manual for supported impedance. If there’s a “4-ohm mode,” try it. It limits voltage to protect the amp. You’ll lose a bit of maximum power, but you’ll gain stability and cooler operation.
Long cable runs? Use thicker wire. 16-gauge is fine for most 8-ohm runs up to ~50 ft. Go 14-gauge for longer or for 4-ohm speakers. High resistance isn’t the main heat issue, but it doesn’t help.
Double-check wiring. A stray copper strand touching the other post can create a partial short. That’s instant heat. Tighten all posts. Keep banana plugs snug.
Settings that save degrees
Use a subwoofer. Cross the mains at 80 Hz. Let the sub handle the heavy lifting. Bass demands current. Offloading it cools the AVR a lot.
Run room correction. Then check the results. If it set channels too high, trim back 1–2 dB and raise the master volume a touch. Same loudness, less channel gain stress.
Try Eco/Auto-Eco mode. It reduces idle power and average dissipation. If the sound gets too compressed for music night, turn it off for that session. For TV and casual listening, Eco is great.
Avoid super-low-impedance “bi-amp” tricks on entry receivers. It doesn’t double power. It does double heat in the same chassis.
Disable features you don’t use. Always-on HDMI pass-through and network standby keep power rails warm 24/7. Turn them off if you don’t need them.
Usage habits that help
Don’t run test tones or pink noise at high levels for long stretches. That’s a torture test. Movies and music are dynamic. Torture tests aren’t.
If you like it loud, don’t stuff the receiver into a sealed cubby. High SPL in a closed rack is a guaranteed shutdown.
Give it a breather between marathons. Five minutes on pause with the cabinet door open can drop internal temps fast.
Add active cooling
For furniture installs, use cabinet fans. Mount an exhaust high/rear to push hot air out. Add an intake low/front if the cabinet is tight. Now you’ve got front→back, low→high airflow like a mini theater rack.

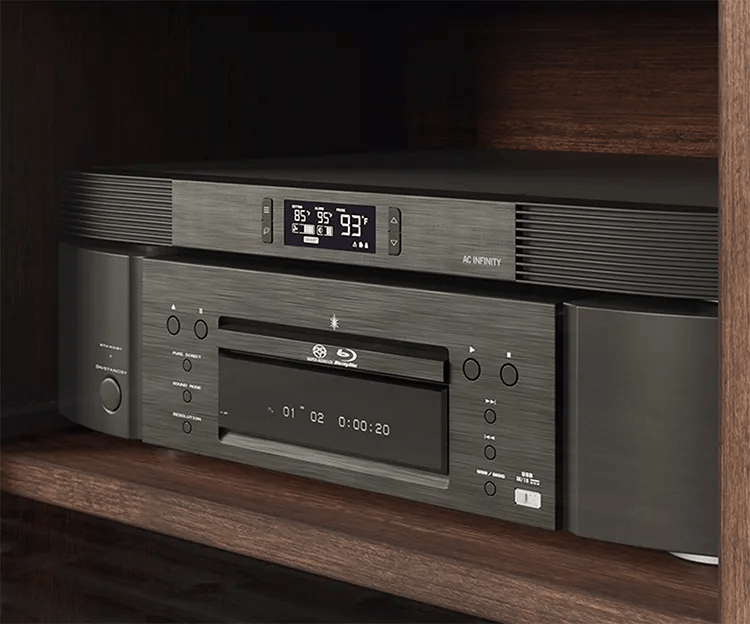

You can absolutely pull heat out of a receiver. The cleanest method is a top-exhaust platform fan that sits on the unit and blows hot air out the back. Great for open racks and shelves.
Look for thermostat control so fans ramp only when the AVR is warm. It keeps things quiet.
Good, proven options:
- Top of receiver: AC Infinity AIRCOM series (T8/T9/T10/S7). Low-profile, rear exhaust, smart temp control.
- Inside a cabinet: AC Infinity AIRPLATE T/S series. Intake low/front, exhaust high/rear. Simple and effective.
- Budget assist: 120 mm fan kits (e.g., Coolerguys). Stand one behind the AVR to help pull heat out.
Place the receiver on top of the stack, not under a hot cable box or game console. Heat rises. Don’t let someone else’s heat rise into your AVR.
Are laptop coolers okay?
They help a little in a pinch, but they blow on the bottom. Your receiver vents on top. You want heat pulled up and sent out the back. A platform or cabinet fan matches that airflow and works far better.
Offload the heavy lifting
Running 9, 11, or 13 channels? Consider an external amp for the front LCR. Pre-outs + a modest 3-channel amp = a cooler receiver and better headroom. Powered subs already offload bass. Do the same for the most demanding speakers.
Firmware and service
Update firmware. Some models tweak fan curves, idle power, or protection behavior. If it still overheats with perfect airflow and sane volume, you may have a failing fan or bad thermal sensor. That’s a service ticket—especially if it’s under warranty.
Quick wins (do these first)
- Open the cabinet or add a fan; clear 4–6 inches above the top grill.
- Cross your speakers at 80 Hz and use the sub.
- Check for stray wire strands and confirm polarity.
- Try Eco mode for daily use; disable always-on HDMI/network.
What temperature is “too hot”?
Warm is normal. Hot is subjective. As a rule of thumb, if you can’t keep your hand on the top panel for more than a couple seconds, it’s running hard. An inexpensive IR thermometer helps. Aim for under ~60 °C / 140 °F on the top plate during a long movie. Lower is better.
The bottom line
Heat isn’t mysterious. It’s airflow, load, and habits. Give the receiver room to breathe. Use the sub to carry the bass. Keep wiring clean. Add a top-exhaust platform or cabinet fans if the furniture is pretty but sealed. Offload the front stage if you run big systems. Do that, and your AVR will stop moonlighting as a space heater—and go back to sounding great.
